Gear Oil

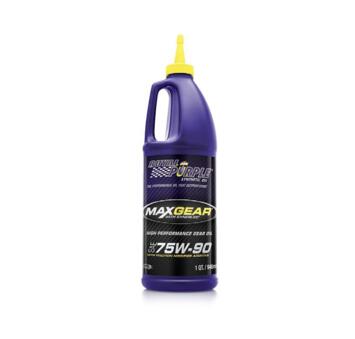

Max-Gear is an extremely tough, high-performance GL-5 gear oil designed to provide maximum protection under heavy-duty gearboxes while increasing power through the transmission. Max-Gear outperforms other GL-5 oils as it combines the highest quality synthetic oils with Synslide ™, Royal Purple's proprietary synthetic oil film that is so strong and tough it won't be squeezed out of the pressure zone. Max-Gear virtually eliminates gearbox and bearing wear even in extremely difficult "film crushing" conditions caused by very heavy loads, sudden shock loads and low revs. The slippery synthetic molecules not only reduce wear and friction, but significantly increase the fluidity and lubricity of Max-Gear at low temperatures, making it the ideal product for vehicles operating in cold climates. Max-Gear ensures better operation of the gearbox, with less noise, lower temperatures and longer times, without revisions and without corrosion, both for ferrous and non-ferrous metals.

View features

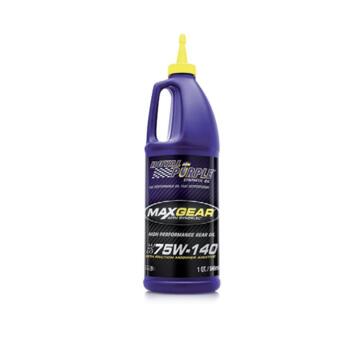

Max-Gear is an extremely tough, high-performance GL-5 gear oil designed to provide maximum protection under heavy-duty gearboxes while increasing power through the transmission. Max-Gear outperforms other GL-5 oils as it combines the highest quality synthetic oils with Synslide ™, Royal Purple's proprietary synthetic oil film that is so strong and tough it won't be squeezed out of the pressure zone. Max-Gear virtually eliminates gearbox and bearing wear even in extremely difficult "film crushing" conditions caused by very heavy loads, sudden shock loads and low revs. The slippery synthetic molecules not only reduce wear and friction, but significantly increase the fluidity and lubricity of Max-Gear at low temperatures, making it the ideal product for vehicles operating in cold climates. Max-Gear ensures better operation of the gearbox, with less noise, lower temperatures and longer times, without revisions and without corrosion, both for ferrous and non-ferrous metals.

View features

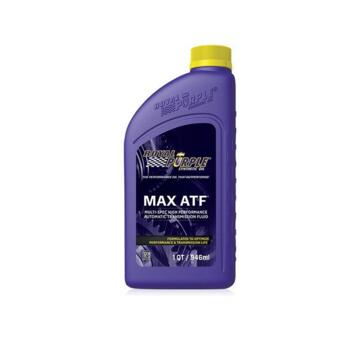

Max ATF is a long-lasting, high-performance, multipurpose synthetic fluid for automatic transmissions. Max ATF is recommended for all automatic transmissions that require Ford Mercon or GM Dextron Type III transmission fluids. Max ATF is more stable to oxidation than many other fluids and guarantees greater resistance against failures caused by heat and loss of lubricity. Max ATF is fully compatible with other automatic transmission fluids, but for best results it is recommended that the old fluid be completely drained and refilled with Max ATF.
Performance benefits
- Reduces operating temperatures.
- Greater uniformity and precision of the change.
- Ensures clean and efficient changes.
- Increases the life of the fluid in operation.

View features

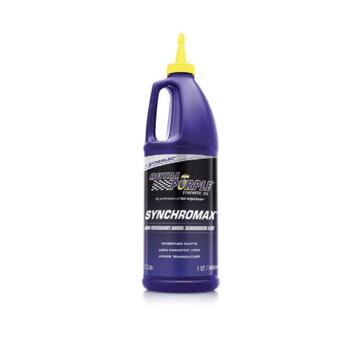

High performance manual transmission fluid.

Synchromax is ideal for 2-stroke motorcycle gearboxes and is formulated with Synerlec, Royal Purple's proprietary synthetic additive that improves gear quality over a wider range of temperatures, reducing gear noise. Synchromax is fully compatible with all friction materials and guarantees high protection against corrosion and oxidation without damaging the light metals commonly used in manual transmission synchronizers.

View features

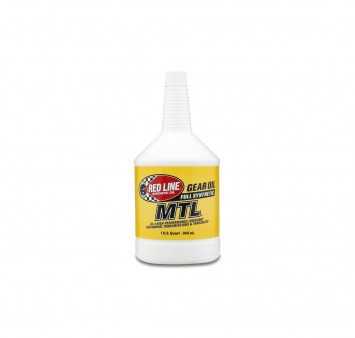

Red Line Oil MTL is a 75W80 GL-4 gear oil, blended with the highest quality group 5 ester base stocks. MTL offers superior gear and synchro protection, balanced friction for easier shifting and reduced drag on moving parts. Ideally suited to synchromesh transmissions, Red Line’s MTL offers one of the highest performances of any gear oil on the market making it extremely popular.

Red Line MTL gear oil features:

- Popular for BMW, Honda and Acura, Ford Focus, late-model Mini Cooper, Dodge & Jeep NV1500, NV3500 and NV5600 truck transmissions
- Popular replacement for and improvement over GM Synchromesh® (#12345349) and Auto-Trak II® (#12378508), also Ford Motorcraft® XT-MT-QS
- Safe for brass synchros, as it lacks the reactive sulfurs found in most GL-5 oils that cause damage
- Offers quicker shifts, perfect synchronizer coefficient of friction
- Eliminates notchy shifting, even when cold
- High performance gear protection and longer synchro life
- Satisfies the gear oil viscosity requirements of 75W, 80W, and motor oil viscosities of SAE 30, 10W30, and 5W30
- Recommended for GL-1, GL-3, and GL-4 applications, as well as where most special synchromesh fluids are specified

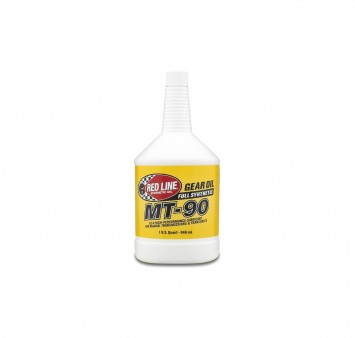

Red Line Oil MT-90 is a 75W90 GL-4 gear oil, blended with the highest quality group 5 ester base stocks. MT-90 offers superior gear and synchro protection, balanced friction for easier shifting and reduced drag on moving parts. Ideally suited to synchromesh transmissions, Red Line’s MT-90 offers one of the highest performances of any gear oil on the market making it extremely popular.

Red Line MT-90 Gear Oil features:

- 75W90 GL-4 gear oil (similar to SAE 5W40/10W40 engine oil viscosity)
- Popular in Nissan, Mazda, Mitsubishi, VW/Audi, Lotus Elise/Exige, Toyota
- Offers quicker shifts, perfect synchronizer coefficient of friction
- Safe for brass synchros, as it lacks the reactive sulfurs found in most GL-5 oils that cause damage
- High performance gear protection and longer synchro life
- Eliminates notchy shifting, even when cold
- Satisifies the gear oil viscosity requirements of 75W, 80W and motor oil viscosities of SAE 40, 10W40, and 15W40
- Recommended for GL-1, GL-3, and GL-4 applications, as well as where most special synchromesh fluids are specified

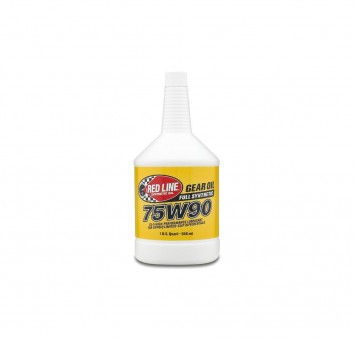

Red Line Oil 75W90 is a GL-5 gear oil suited to many transmissions including dog engagement and sequential transmissions, it also works very well in differentials including limited slip. 75W90 is blended with the finest ester base stocks which provide a natural multi-grade, avoiding the need for unstable thickeners and increasing the film strength and temperature stability of the oil. The use of the finest materials available allows Red Line to provide superior protection and unrivalled performance.

Red Line 75W90 Gear Oil features:

- Most popular Red Line gear oil, with thousands of applications for passenger cars, light trucks, and racing vehicles
- Contains additional friction modifiers for suitablity with clutch-type limited slip differentials - for most LSDs, no additional friction modifiers are required
- This product is not designed for use in most manual transmissions or tranaxles, since the extreme slipperiness may cause synchronizer mesh issues that lead to shifting problems
- Recommended for API GL-5, GL-6, MT-1, MIL-L-2105E, and SAE J2360

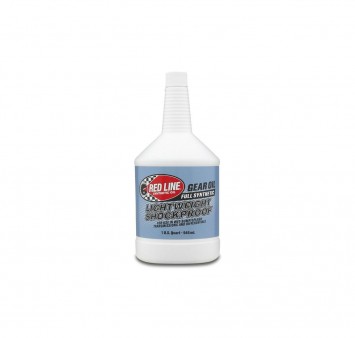

The revolutionary Shockproof range has cemented Red Line as the leading manufacturer of transmission oils. Used at the pinnacle of motorsport including WRC, IndyCar and Sports cars, Shockproof offers performance like no other on the market. Lightweight Shockproof is popular in sequential gearboxes and differentials because of its high levels of protection yet low drag on moving parts, providing minimal power losses through the transmission.

Red Line LightWeight ShockProof™ Gear Oil features:

- Film thickness greater than an SAE 75W140, yet low fluid friction like 80W gear oil or 30W motor oil
- Excellent low-temp flow, improved cold shifting
- For racing differentials under moderate loads
- Popular in racing transmissions like Hewland and other Road Racing dog-ring boxes, Bert and Brinn for Stock Cars, G-Force, and Liberty clutchless for Drag Racing

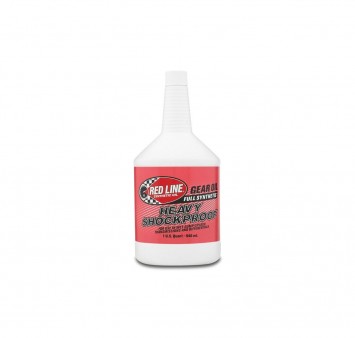

The revolutionary Shockproof range has cemented Red Line as the leading manufacturer of transmission oils. Used at the pinnacle of motorsport including WRC, IndyCar and Sports cars, Shockproof offers performance like no other on the market. Heavyweight Shockproof is popular in sequential gearboxes and differentials because of its extreme levels of protection, works very well in excessive temperatures and is recommended by Sadev.

Red Line Heavy Shockproof™ Gear Oil features
- Film thickness greater than an SAE 75W250, yet low fluid friction like 75W90
- For heavily-loaded racing differentials and transmissions, problem gearboxes
- Many performance racing applications like Sprint/Midget/Dirt Late Model Differentials, Detroit Lockers and spools, NHRA Top Fuel and Funny Car rear ends
- Not recommended for most synchro applications due to the product's extreme slipperiness
