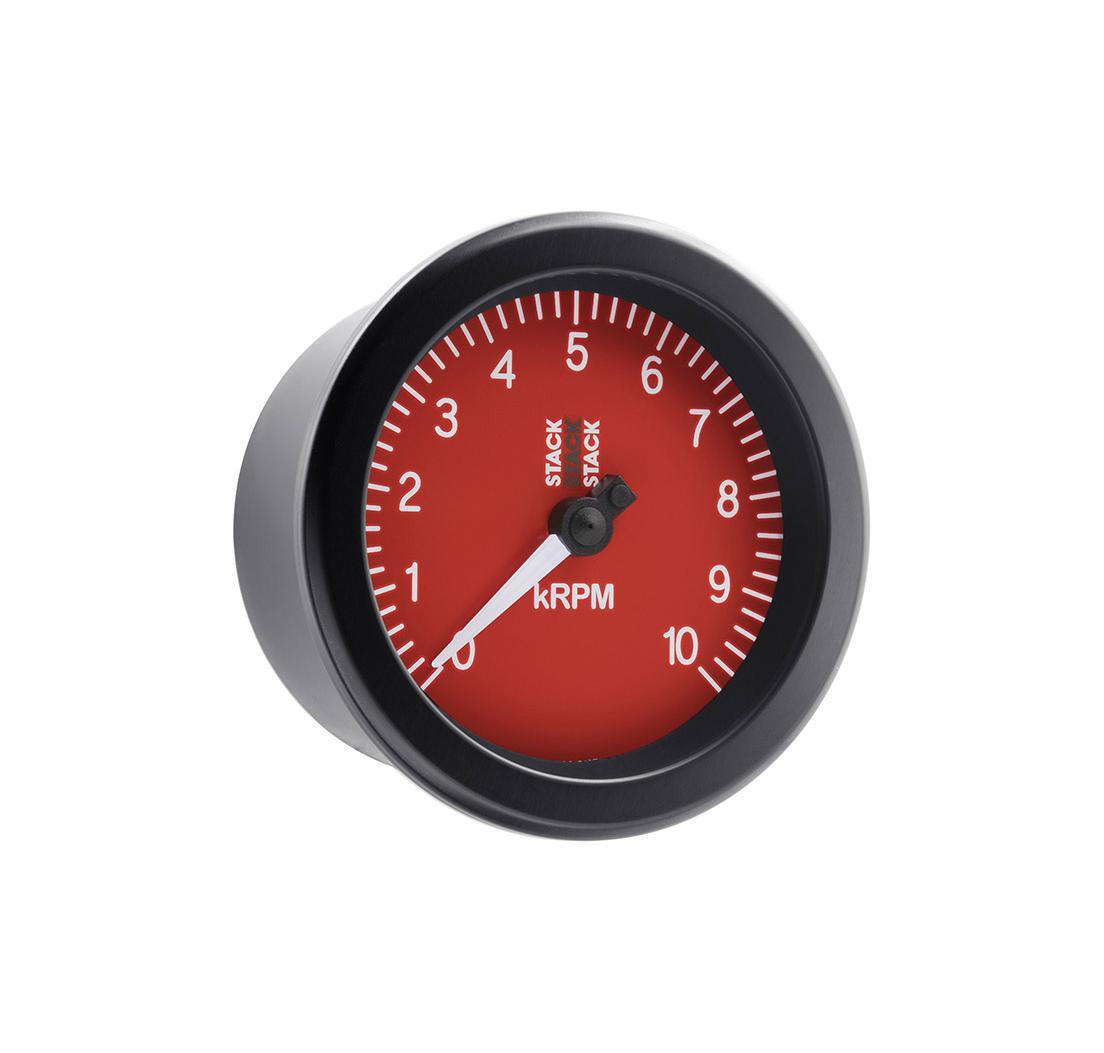

Stack SPORT tachometer (0-10.000 rpm) 80 mm - red

Low-cost tachometer, compatible with ST38xx speedometers

Air core based in-dash performance tachometer matched to ST38xx speedometers and
existing 52mm gauges – Note: this is NOT a stepper motor needle movement.
• Lower cost and reduced feature set from ST200 Clubman models (tach only, not
sealed, no shift light or peak memory)
• Supports most 4-8 cylinder applications
• 3 dial face colors (black, white, Stack red)
• Two scales, 0-8k linear and 0-10k linear
• Through dial White LED backlighting
• Will incorporate the black case and 8 terminal connectors
• Intended for performance, tuning, and track day customers seeking to create a fully
matched set of instruments within the Stack line

Installation Guide
