600MP

600 series Medium Pressure AN-04, AN-05, AN-06 & AN-08 bore size hoses are designed for fuel, oil, water and damper reservoir fluid transfer systems. The 600 series hose strongly resists expansion under high pressure and temperature.

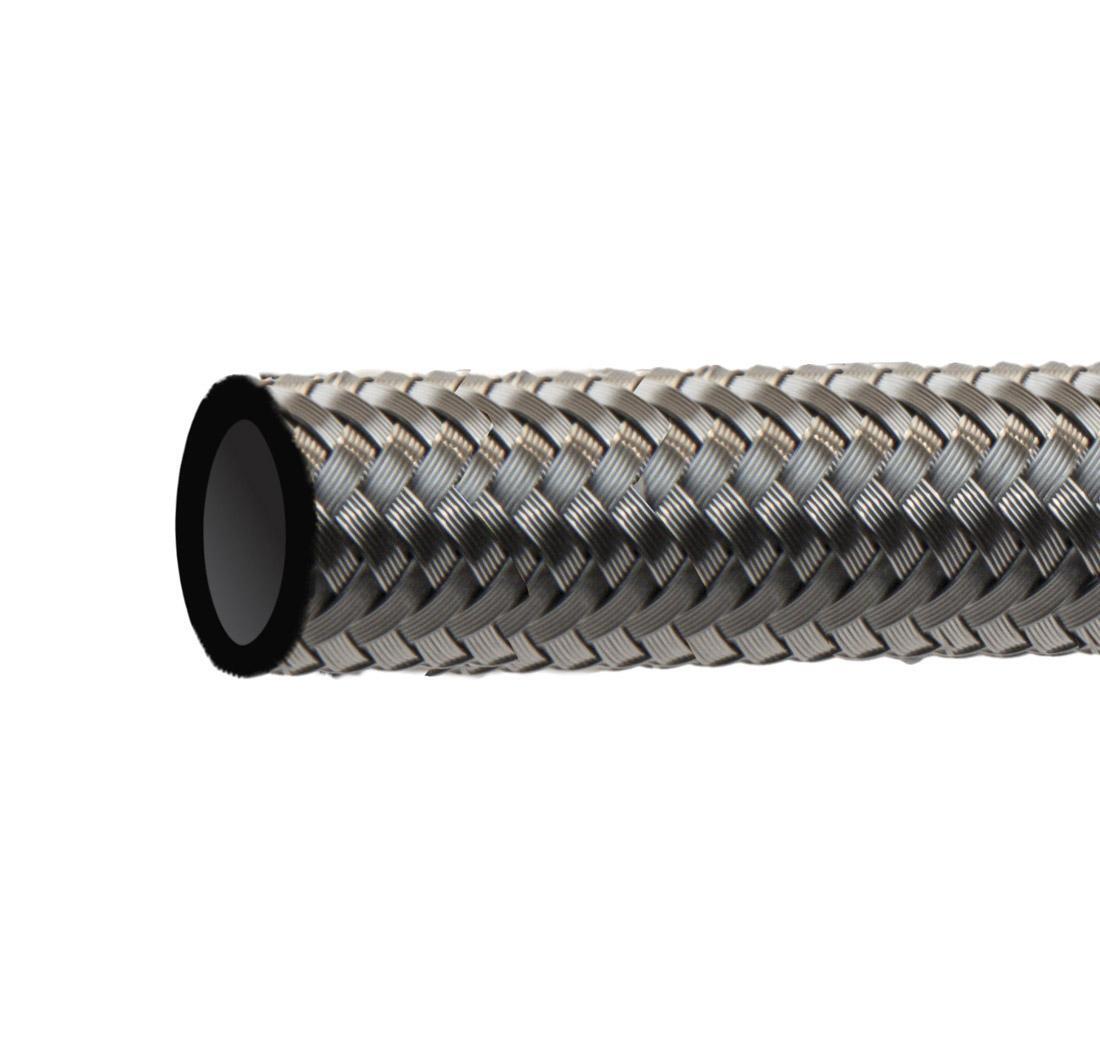

The Stainless Steel braid offers abrasion, corrosion and fire resistance, which also provides heat protection to 260°C.

Note: Temperature affects maximum working pressure as listed; for temps above 130° C reduce the working pressure by 0.75% for each degree above 130° C. Max 260° C.

_ _ _ _ _
Fluid applications:
Fuel, Oil, Water, Dampers

Construction:
Stainless steel braid with PTFE liner
(Optional carbon look or clear covering available)

Compatible fittings:
600MP reusable
600MP crimp

Please note:
Other hose sizes are available with coatings by special request. Anti-static used in sizes dash 4 upwards.
