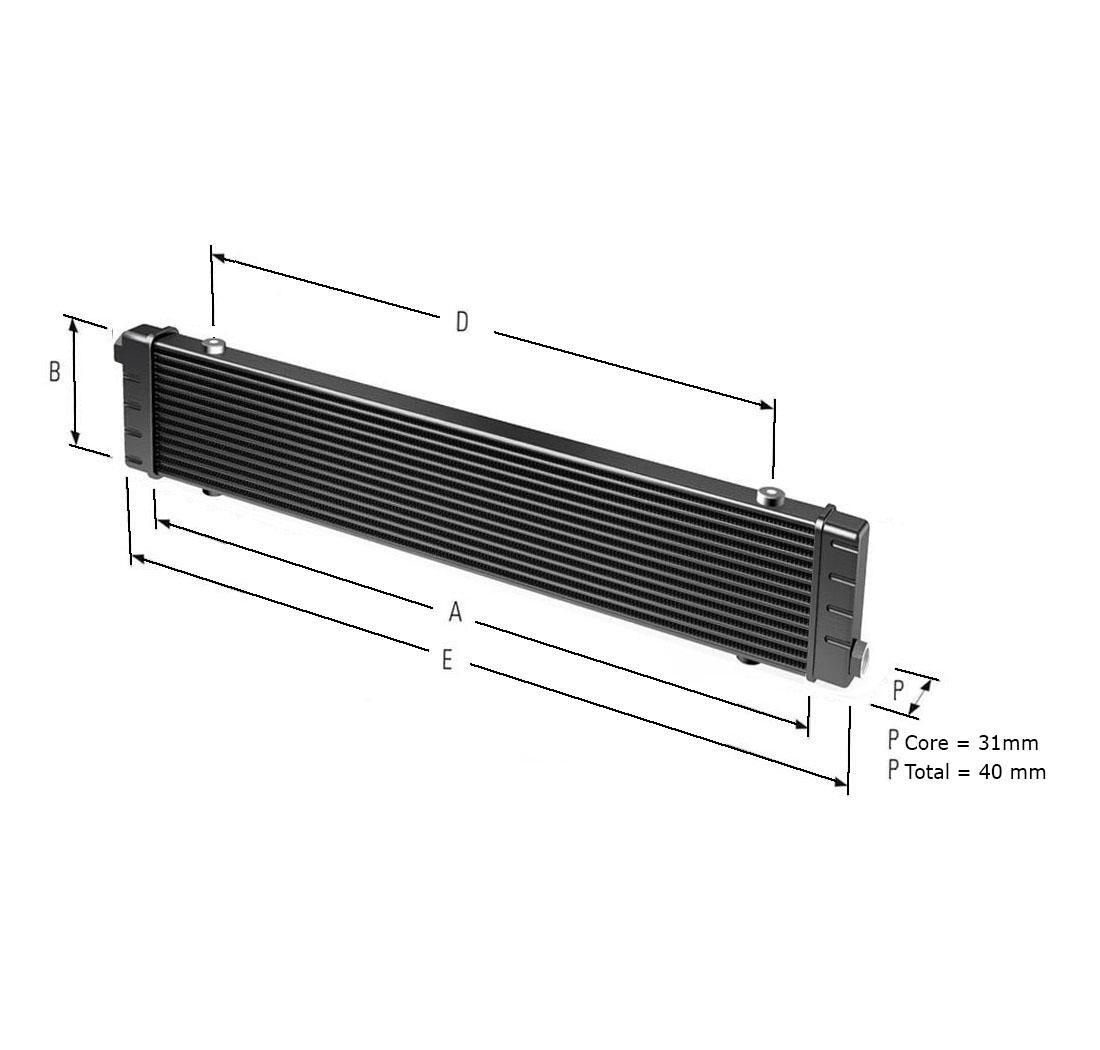

Setrab SLIM racing cooler 141-6 rows - M22

Ideal for cooling your transmission, rear axle, motorcycle, etc.
Developed for applications with restricted packaging space.

A high performance Slimline cooler, redesigned and strengthened for the automotive racing market.

Technical Specifications
Working Pressure:
6-row:   0-8 bar(g) dynamic
10-row: 0-8 bar(g) dynamic
14-row: 0-6 bar(g) dynamic

Pressure Pulsation Endurance

6-row:   200k pulsations, 0-8 bar(g), 2 Hz, 60°C oil temp
10-row: 200k pulsations, 0-8 bar(g), 2 Hz, 60°C oil temp
14-row: 50k pulsations,   0-8 bar(g), 2 Hz, 60°C oil temp

Max Pressure:  10 bar(g)
Burst Pressure:  25 bar(g)
Pressure Test:
6-row:   8 bar(g)
10-row: 8 bar(g)
14-row: 6 bar(g)

Leak Test :4 bar(g)
Working Temperature: -40°C to 150°C
Corrosion Endurance: 20 days according to SWAAT G85-94 A3
Inner Cleanliness ISO 4406 16/14
General Dimensional Tolerances ISO 2768-v
Material: Aluminium alloys
Max Connection Tightening Torque: 40 Nm
