CP6840

Brake Calipers Rally Cars AP RACING

Applications:
- WRC Turbo.
- S2000 Tarmac / Gravel Specifications.
- Manufactured to meet FIA R4T & R5 cost cap.

Features:
- Radial mount, 180 x 42mm centres.
- Forged monobloc Aluminium alloy body.
- Suits Ø355 or Ø300 x 32mm iron discs.
- Benefits from Radical asymmetric design concept for superior dynamic performance.
- Ducted air cooling features, reduces caliper temperatures.
- Monobloc aluminium alloy body.
- Internally Ported

- No external bridge pipe.
- Available with either a "Push In" or an "M10 x 1.0 Threaded" Inlet.
- Stainless steel pistons.
- High temperature, low drag seals fitted as standard.
- Manufactured with bleedscrew and pipe protection.

4
2 x 34,9 - 2 x 41,3 mm
300 or 355 mm
32,0 mm
Radial
10,175 mm
180,0 mm
2,16 Kg

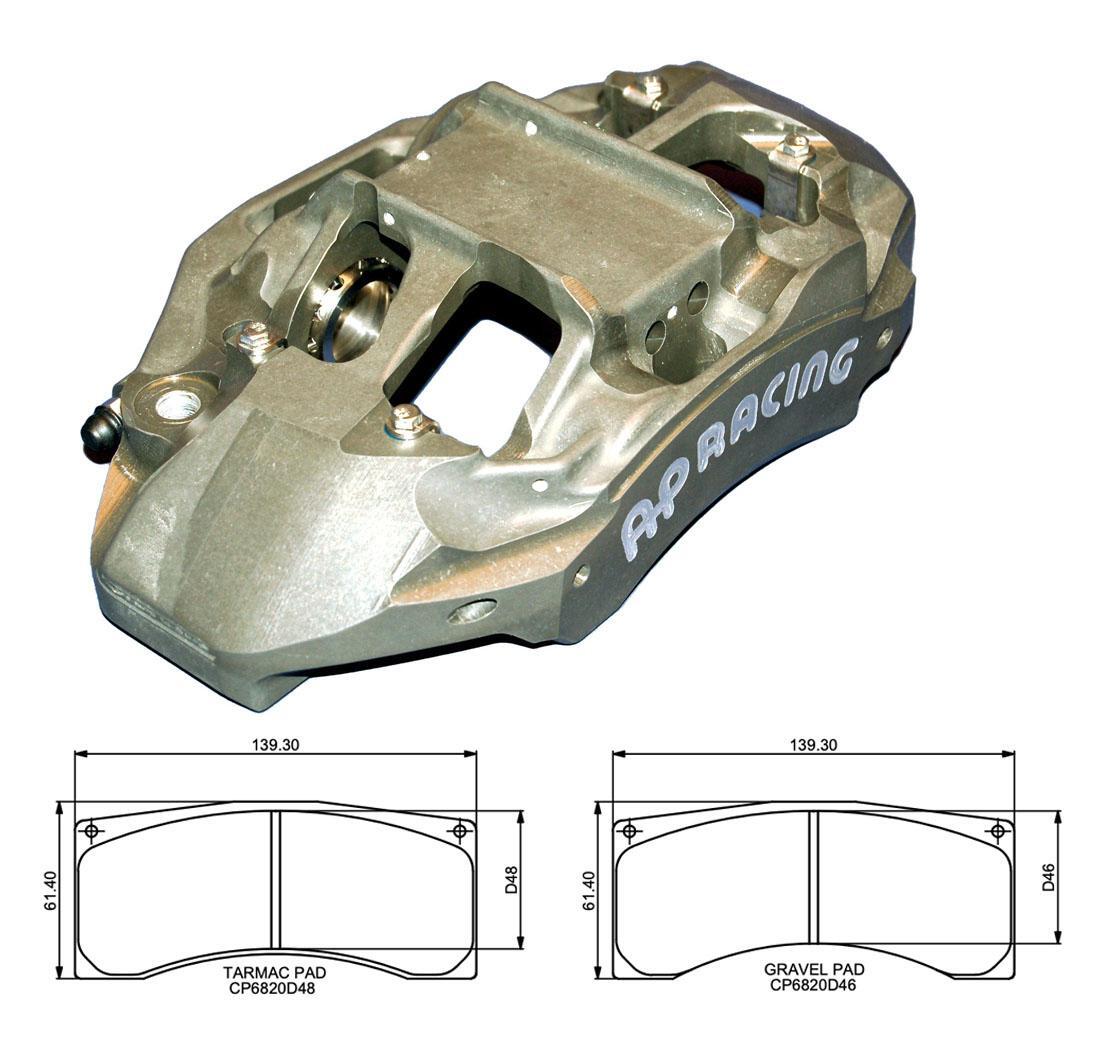

CP6820D46 (gravel) - CP6820D48 (tarmac)
CP8518-GK
57,5 mm
42,0 mm
-
