Brake Calipers PRO5000 R Series

4 Pistons rear, Radi-CAL™

Typical Applications:
- Budget, general competition use rear.
- Single make race series rear.

Features:
- Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece aluminium alloy body.
- Radial mount, 152.0mm x 44.0mm centres.
- Suits Ø330.0mm or 315.0mm x 28mm thick disc.
- Stainless Steel Pistons.
- High temperature seals.
- 4lb Anti-knockback springs fitted.
- Stainless Steel wear plates.

CP9440 customer drawing
CP9441 customer drawing

4 Pistons, Radi-CAL™ to suit 13" wheel.

Application
- Designed to suit a 13” wheel, generally for single seaters..

Caratteristiche:

- Radial mount, 152 mtg ctrs.
- Benefits from a radical asym- metric design concept. Offering superior dynamic performance.
- Forged, two piece Aluminium alloy body.
- Integral pad retainer to enhance caliper stiffness.
- Suits disc up to Ø280 x 18/21/22 & 25.mm thicknesses.
- Internally ported.

CP9444 customer drawing
CP9445 customer drawing

4 Piston, Radi-CAL™ - centres 180 mm - for general competition use

- Radial mount, 180x 35mm ctrs.
- Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece Aluminium alloy body.
- Suits upto Ø380 x 32 or 28mm discs.
- Stainless Steel pistons fitted.
- Stainless Steel wear plates.

4 Piston, Radi-CAL™ Front - 152mm ctrs - General competition use

- Radial mount, 152 x 44mm ctrs.
- Benefits from a radical asym- metric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece Aluminium alloy body.
- Suits disc upto Ø380mm x 28 or 32mm thickness.
- Stainless Steel pistons fitted.
- Stainless Steel wear plates.
- Lb Anti-knockback springs fitted as standard.

4 Piston, Radi-CAL™ Rear - 152mm ctrs - General competition use

- Radial mount, 152 x 44mm ctrs.
- Benefits from a radical asym- metric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece Aluminium alloy body.
- Suits disc upto Ø380mm x 28 or 32mm thickness.
- Stainless Steel pistons fitted.
- Stainless Steel wear plates.

6 Piston, Radi-CAL™ - 180 mm centres.

TYPICAL APPLICATION
- Budget general competition use.

FEATURES
- Radial mount, 180 x 42mm ctrs.
- Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece Aluminium alloy body.
- Suits disc up to Ø380 max / Ø356 min x 36 or 32mm thickness.
- Internally ported.
- Stainless Steel pistons fitted.
- Stainless Steel wear plates.

CP9660 customer drawing

6 Piston, Radi-CAL™ - 210 mm centres.

TYPICAL APPLICATION
- Budget general competition use.

FEATURES
- Radial mount, 210 x 42mm ctrs.
- Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece Aluminium alloy body.
- Suits Ø390/362 x 36/32mm discs.
- Internally ported.
- Stainless Steel pistons fitted.
- Stainless Steel wear plates.

CP9665 customer drawing

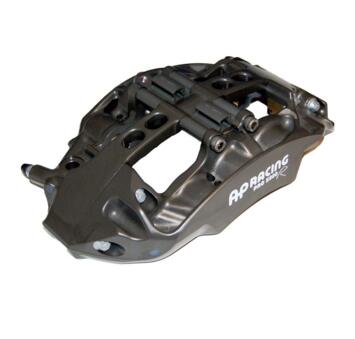

6 Piston, Radi-CAL™ - 180 mm centres.

TYPICAL APPLICATION
- Budget general competition use.
- Single make race series

FEATURES
- Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece aluminium alloy body.
- Radial mount, 180.0mm x 42.0mm centres.
- Suits Ø390.0mm Max or 362.0mm Min x 36.0mm Max / 32.0mm Min thick disc.
- Stainless Steel Pistons.
- High temperature seals.
- 7lb Anti-knockback springs fitted.
- Stainless Steel wear plates.

CP9668 customer drawing
