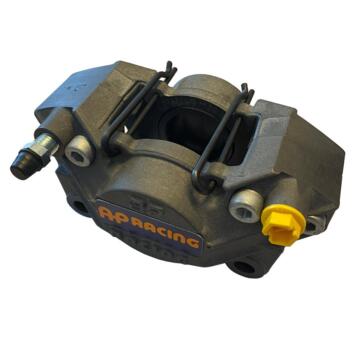

Brake Calipers Rally Cars

In aluminum 2 pieces, symmetrical

Application:
- Rally

Characteristics:
- Identical pistons.
- Lug mount
- For Ø265 x 8mm discs.

S2000 - Two Piece Front & or Rear.§

Applications:
- CP6720 Suitable Front Caliper for:
S2000 and Rally Raid.
- CP6730 Suitable Rear Caliper for:
S2000 and Rally Raid.

NB. CP6720 can be used as a rear caliper also.

Features:
- CP6720 has differential bores.
- CP6730 has equal bores.
- Radial mount, 180 x 35.0mm.
- Suits Ø356 / Ø285 x 28mm discs.
- Two piece Aluminium alloy body.
- Internally ported.
- no external bridge pipes.
- Protected bleed screw.
- Aluminium piston standard
- Stainless steel optional.

CP6720 customer drawing
CP6730 customer drawing

6 Piston - Rally Raid.

Applications:
- Rally Raid Front & Rear.
- Low cost option as superceded by New Radi-Cal caliper CP6766.

Features:
- Radial mount, 180.0 x 35.0mm.
- Suits Ø355 or Ø320 x 32 or 28mm discs.
- Two piece Aluminium alloy body.
- Internally ported.
- no external bridge pipes.
- Protected bleed screw.
- Stainless steel pistons with dirt seals fitted.
- Version for Ø355 x 32mm disc available. Please refer to CP6750-10CD, Customer drawing for details.

CP6750 (2-5) customer drawing
CP6750 (6-9) customer drawing

4 Piston - S2000 / Grp N Rear.§

Applications:
- S2000 Rear.
- Grp N Rear.

Features:
- Radial mount, 180 x 35.0mm.
- Suits Ø300 x 28mm discs.
- Two piece Aluminium alloy body.
- Internally ported.
- no external bridge pipes.
- Protected bleed screw.
- Stainless steel piston.

CP6760 customer drawing

6 Piston, Billet Radi-CAL™ - Rally Raid

Applications:
Rally Raid, Touring

Features:
- Billet monobloc Aluminium alloy body.
- Radial Mount, 200mm x 43mm centres.
- Designed to operate on iron brake discs Ø355mm max / Ø320mm min x 32mm
- Check Ø320mm wheel profile before fitment.
- Designed using AP Racing pateneted Radi-CAL™ asymmetric design concept.
- Superior dynamic performance.
- Ducted Air cooling features, significantly reduces caliper temperatures.
- Internally Ported.
- Stainless steel pistons.

Applications:
- WRC Turbo.
- S2000 Tarmac / Gravel Specifications.
- Manufactured to meet FIA R4T & R5 cost cap.

Features:
- Radial mount, 180 x 42mm centres.
- Forged monobloc Aluminium alloy body.
- Suits Ø355 or Ø300 x 32mm iron discs.
- Benefits from Radical asymmetric design concept for superior dynamic performance.
- Ducted air cooling features, reduces caliper temperatures.
- Monobloc aluminium alloy body.
- Internally Ported

- No external bridge pipe.
- Available with either a "Push In" or an "M10 x 1.0 Threaded" Inlet.
- Stainless steel pistons.
- High temperature, low drag seals fitted as standard.
- Manufactured with bleedscrew and pipe protection.

Applications:
- R2 Rally or similar series.

Features:
- Radial mount, 152 x 39.8mm centres.
- Suits Ø285 or Ø310mm x 26mm discs.
- Lightweight Forged Aluminium alloy construction.
- Aluminium alloy pistons.
- High temperature, low drag seals fitted as standard.
- Manufactured with bleedscrew and pipe protection.
- Stainless steel pad abutments and wear plates fitted.
