Brake Calipers GT Cars

6 Piston - Forged Radi-CAL™.§

Applications:
- GT3.

Note:
CP5095 compliments CP6480, 4 Piston Radi-CAl™ Rear.

Features:
- Radial Mount, 210 x 42mm centres.
- Radical new asymmetric design concept.
- Superior dynamic performance.
- Monobloc Aluminium alloy body.
- Suits Ø378 x 36mm disc.
- Internally Ported.
- Stainless steel pistons.
- 'H' Piece pad retainer.
- 7lb Anti-knockback springs fitted.
- Version for Carbon Disc also available.

CP5095 customer drawing

6 Piston - Radi-CAL™.

Applications:
- GT Cars Front & Rear.

Features:
- Radial Mount, 210mm centres.
- Radical new asymmetric design concept.
- Superior dynamic performance.
- Ducted Air cooling features, significantly reduces caliper temperatures.
- Monobloc Aluminium alloy body.
- CP6077 small bore version.
- Designed to operate on Carbon or Iron Discs.
- Internally ported.
- Titanium pistons.
- Carbon ducts fitted.
- Dry Breaks fitted.

CP6077 customer drawing
CP6078 customer drawing

6 Piston, Billet Radi-CAL™, Swing Bridge, Quick Pad Release

TYPICAL APPLICATION
- All GT / Endurance Classes.

FEATURES
- Radial mount, 210 x 42mm Ctrs.
- Benefits from radical asymmetric design concept.
- Superior dynamic performance.
- Extra central bridge increases stiffness
- Swing bridge, quick release pad retainer mechanism.
- Monobloc Aluminium alloy body CNC machined billet.
- Designed to operate Ø390 x 36mm Iron Discs.
- Designed to suit upto 32mm thick pad.
- 100mm total stack thickness allowed.
- Internally ported.
- Domed Titanium pistons fitted.
- Stainless steel pistons option available.
- Dry Bleeds fitted.

CP6083 customer drawing

6 Piston - LMP1 & FIA Radi-CAL™.

Applications:
- GT1
- LMP1.
- LMP2.
- Japanese GT

Features:
- Radial Mount, 210mm centres.
- CP6161 Small bore version.
- Radical new asymmetric design concept.
- Superior dynamic performance.
- Ducted Air cooling features, significantly reduces caliper temperatures.
- Monobloc Aluminium alloy body.
- Designed to operate on Carbon or Iron Discs.
- Internally Ported.
- Titanium pistons as standard.
- Carbon duct fitted.
- Dry Breaks fitted.

CP6160 customer drawing
CP6161 customer drawing

6 Piston Billet, Front Radi-CAL™

Applications:
LMDh, GT

Features:
- Billet monobloc Aluminium alloy body.
- Radial mount, 210mm x 42mm mounting centres.
- Ducted air cooling features.
- Design to operate on 380mm x 32-35mm thick carbon discs.
- Internally ported.
- Titanium pistons.
- Available options include LDVT and Thermosensor kits.

6 Piston Billet, Rear Radi-CAL™

Applications:
LMDh, GT

Features:
- Billet monobloc Aluminium alloy body.
- Radial mount, 210mm x 42mm mounting centres.
- Ducted air cooling features.
- Design to operate on 355mm x 32-35mm thick carbon discs.
- Internally ported.
- Titanium pistons.
- Available options include LDVT and Thermosensor kits.

6 Piston, Forged Radi-CAL™.

TYPICAL APPLICATION
- GT3

FEATURES
- Radial mount, 210 x 42mm ctrs.
- Benefits from radical asymmetric design concept.
- Superior dynamic performance.
- Ducted air cooling features, reduces caliper temperatures.
- Forged monobloc Aluminium alloy body.
- Anodised surface finish.
- Designed to operate on Iron discs 390mm x 36mm.
- 95.6mm total stack thickness allowed.
- Internally ported.
- Stainless Steel pistons fitted.

CP6269 Trailing calipers customer drawing
CP6269 Leading calipers customer drawing

6 Pistons, Billet Radi-CAL™

Application
- All GT / Endurance Classes.

Features
- Radial mount, 210 x 42mm ctrs.
- Benefits from radical asymmetric design concept.
- Superior dynamic performance.
- Ducted air cooling features - reduces caliper temperatures.
- Monobloc Aluminium alloy body.
- Designed to operate on Carbon or Iron Discs.
- Internally ported.
- Titanium pistons.
- Carbon duct fitted.
- Dry Bleeds fitted.
- Optional Ceramic piston insulation caps available.

CP6277 customer drawing

4 Pistons, Forged Radi-CAL™ Rear

Applications
- Rear for All GT / Endurance Classes..

Features
- Radial mount, 180 x 42mm Ctrs.
- Benefits from radical asymmetric design concept.
- Superior dynamic performance.
- Designed to operate on Carbon or Iron Discs.
- Monobloc Aluminium alloy body.
- Ducted air cooling,
- reduced caliper temperatures.
- Calipers are supplied with pistons to suit a 25mm thick brake pad.
- Titanium pistons.
- Internally ported.

CP6278 customer drawing

4 Piston - Forged Radi-CAL™ - GT Rear

Applications:
- General GT.

Note:
CP6480 has been designed to compliment,
6 piston front caliper CP5095 family.

Features:
- Radial Mount, 180 x 42mm centres.
- Radical new asymmetric design concept.
- Superior dynamic performance.
- Forged monobloc Aluminium alloy body.
- Suits Ø355 x 32mm Iron disc
- Internally Ported.
- Stainless steel pistons as standard.
- 7lb Anti-knockback springs fitted.

CP6480 customer drawing

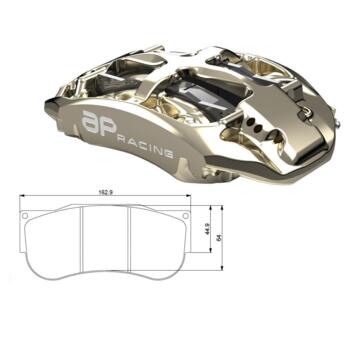

Applications: - GT3

Features:
- Forged Monobloc Aluminium alloy body.
- Radial Mount, 210 x 42mmmm centres.
- Radical asymmetric design concept with fixed bridge design providing superior dynamic performance
- Designed to operate on Ø390.0mm x 36mm Iron Disc.
- Stainless Steel pistons fitted.
- Internally Ported.
- Dry Breaks available as an option.
- Ducted air cooling features.

Customer drawing

Applications: - GT3 Rear

Features:
- Forged Monobloc Aluminium alloy body.
- Radial Mount, 180 x 42 mm centres.
- Radical asymmetric design concept with fixed bridge design providing superior dynamic performance
- Designed to operate on Ø370.0mm x 36mm Iron Disc.
- Stainless Steel pistons fitted.
- Internally Ported.
- Dry Breaks available as an option.
- Ducted air cooling features.
